FACTOIDS & TRIVIA

The Fender Deluxe Amp, model 5B3, received a cosmetic makeover in 1952. The new style cabinet is often referred to as the “wide panel” cabinet. The 5B3 circuit in the wide panel cabinet only lasted until mid-1954, after which the 5C3 circuit emerged. The 5C3 differed from its predecessor by virtue of a negative feedback loop which the 5B3 lacked.

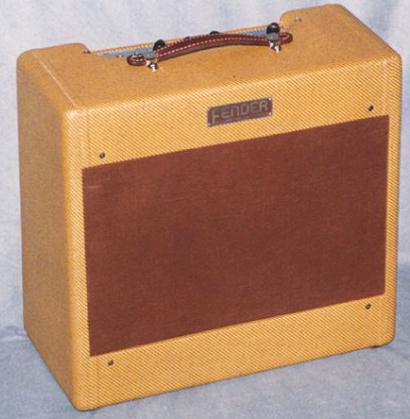

FENDER DELUXE AMP (1952)


 Power Amp:  Tube; 2 x 6V6GT, 12 watts RMS @ 8 ohms

 Preamp:  Tube; 2 x 6SC7

 Rectifier: Tube; 1 x 5Y3GT

 Speakers:  1 x 12" Jensen P12R

 Channels:  2 (Instrument, Microphone); 2 inputs (Instrument), 1 input (Microphone)

 Effects:  None

 Controls:  Volume for each channel, master tone

 Dimensions:  16 1/4 H x 18 W x 7 1/2 D inches

 Total Weight:  26 lb
